You Save Space with HD-7 Four Post Lifts

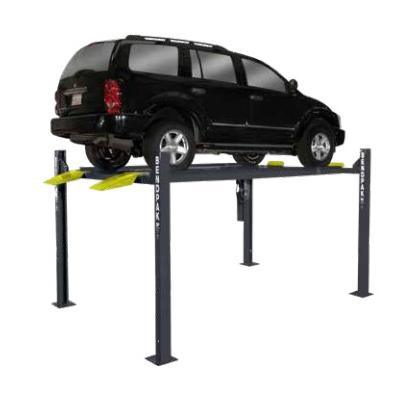

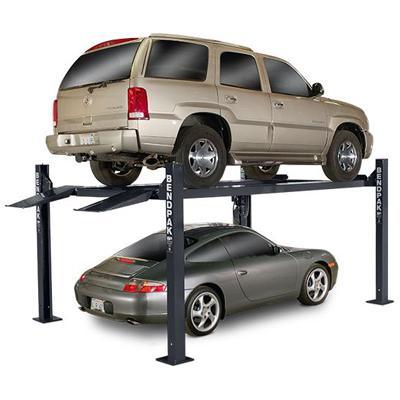

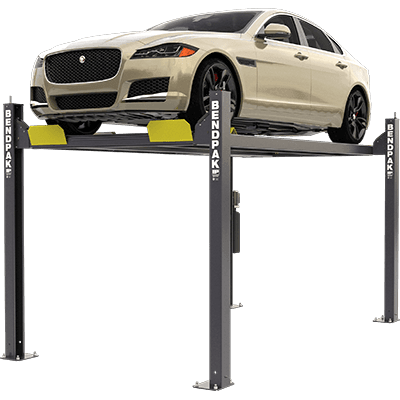

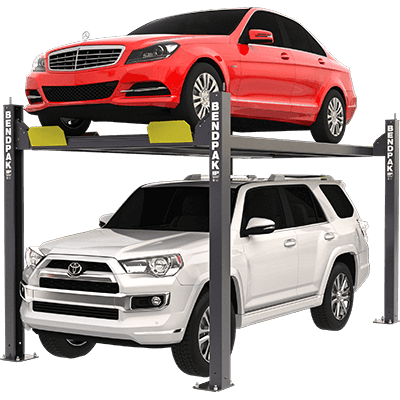

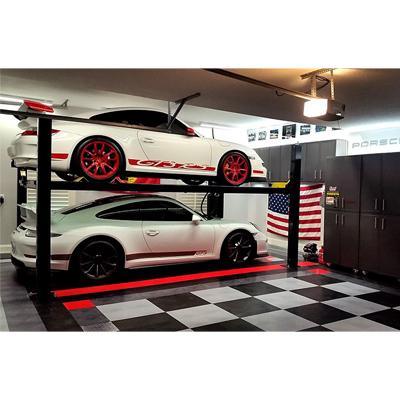

An HD-7 Series four-post lift has a 7,000-lb. lift capacity and comes in narrow or wide configuration. This lets your garage accommodate a lift structure in virtually any space you can park a car. This car lift offers compact convenience and is perfect in more spacious garages to help maintain an open, fresh appearance.
The HD-7 car lift comes in two space-saving configurations. The perfect service lift for shops or garages with limited floor space, the HD-7 does not require a special foundation or complicated installation procedure. Each lift is about the size of a typical parking space and fits nicely as a residential or commercial parking lift. The applications are endless, but what else would you expect from BendPak? After being in this business for over 50 years, our reputation is as solid as our lifts. If you’ve ever owned a BendPak four-post lift, you know that means a lot.
Dependable design: Four heavy-duty stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway make this lift the most durable, maintenance free lifting system on the market.
Dual-hub cable sheaves: Reduce car lift stress and fatigue on the axles, sheaves and cables. We insist on using dual-hub cable sheaves because they ensure that we offer a safer, higher quality product. With BendPak, total peace-of-mind comes standard with every lift.
Multi-level locking positions: Each four-post lift is equipped with multiple locking positions for variable-height parking. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously
This product ships directly from BendPak's facility in California. Car Supplies Warehouse does not keep physical stock of this item. Please allow a 2-3week lead time for all BendPak products.
FEATURES:
- 7,000-lb. maximum lifting capacity
- Wide drive-thru with tall lifting height and short runways
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8” aircraft cable
- Rugged 1.25” roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
- Optional 4,500-lb. capacity rolling jack available
| Model | HD-7P | HD-7W |
| Style | Narrow Width/High Lift | Wide Width/High Lift |
| Max Rise | 82" | 82" |
| Width Between Columns | 90.25" | 100.25" |
This product ships directly from BendPak's facility in California. Car Supplies Warehouse does not keep physical stock of this item.
Click here to download the instruction manual
